Shaker

Discover the precision and reliability of ETS Solutions' shaker products. Engineered with cutting-edge technology and unparalleled expertise, our shakers are designed to meet the most demanding vibration testing requirements.

From compact benchtop models to high-capacity industrial shakers, our comprehensive range offers solutions for a variety of applications.

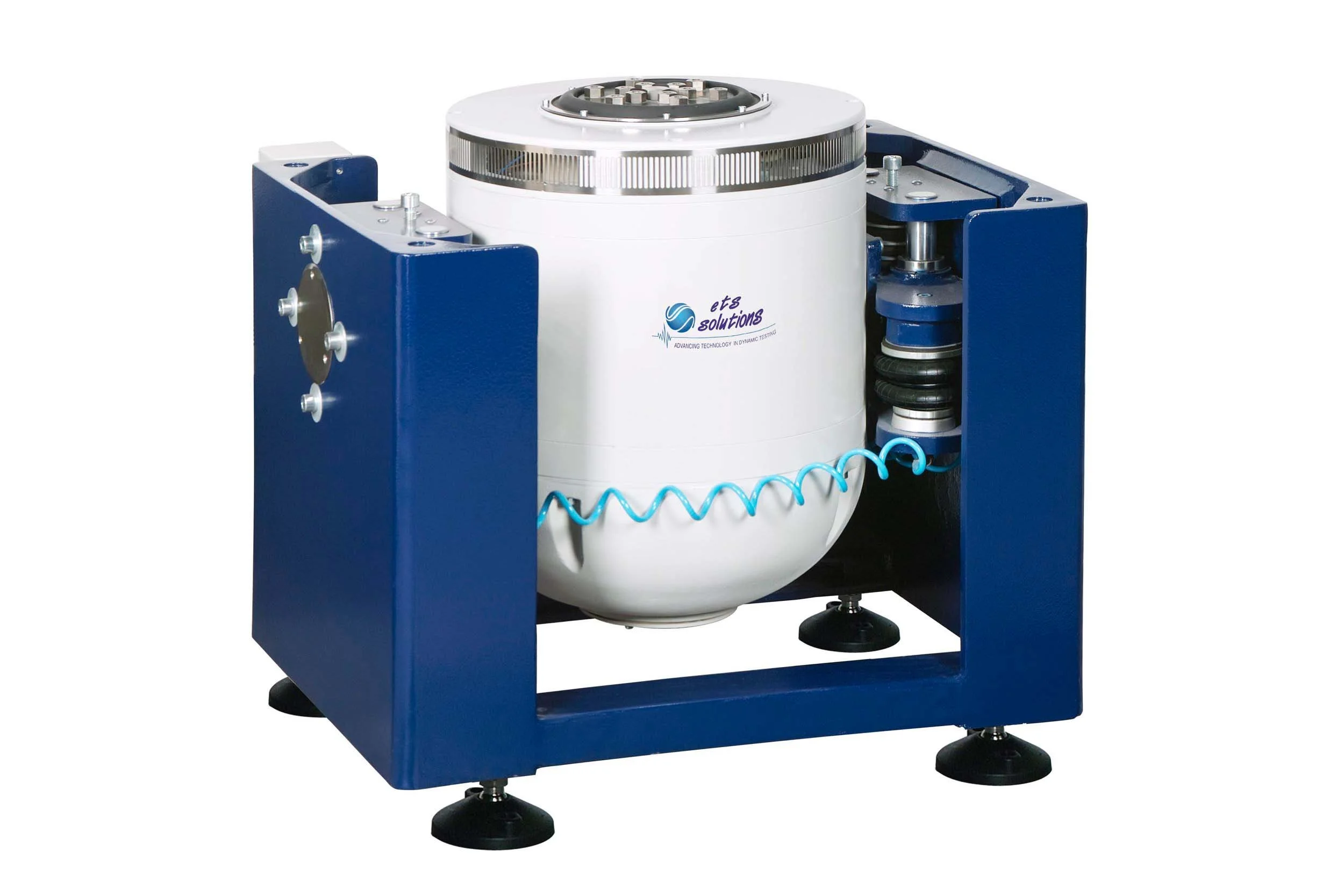

L Series Shaker

L Series Shaker

L Series shakers are a cost effective solutions for product testing and stress screening of small components such as electronic sub-assemblies, automotive components, connectors and portable music devices.

Specifications

    • Specimen payload up to 154 lb (70 kg)

    • Armature diameter: 5.9 in (150mm)

    • Servo controlled operation up to 1 in (25.4 mm) continuous displacement

    • Available as a Unibase slip table in aluminium or magnesium tool plate

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 4,500Hz

    • Specimen payload up to 264 lb (120 kg)

    • Armature diameter: 5.9 in (150mm)

    • Servo controlled operation up to 1 in (25.4 mm) continuous displacement

    • Available as a Unibase slip table in aluminium or magnesium tool plate

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 4,000Hz

    • Specimen payload up to 264 lb (120 kg)

    • Armature diameter: 9.1 in (230mm)

    • Servo controlled operation up to 1.57 in (40.0 mm) continuous displacement

    • Available as a Unibase slip table in aluminium or magnesium tool plate

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 3,000Hz

    • Specimen payload up to 660 lb (300 kg)

    • Armature diameter: 7.9 in (200mm)

    • Servo controlled operation up to 2 in (51 mm) continuous displacement

    • Available as a Unibase slip table in aluminium or magnesium tool plate

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 3,500Hz

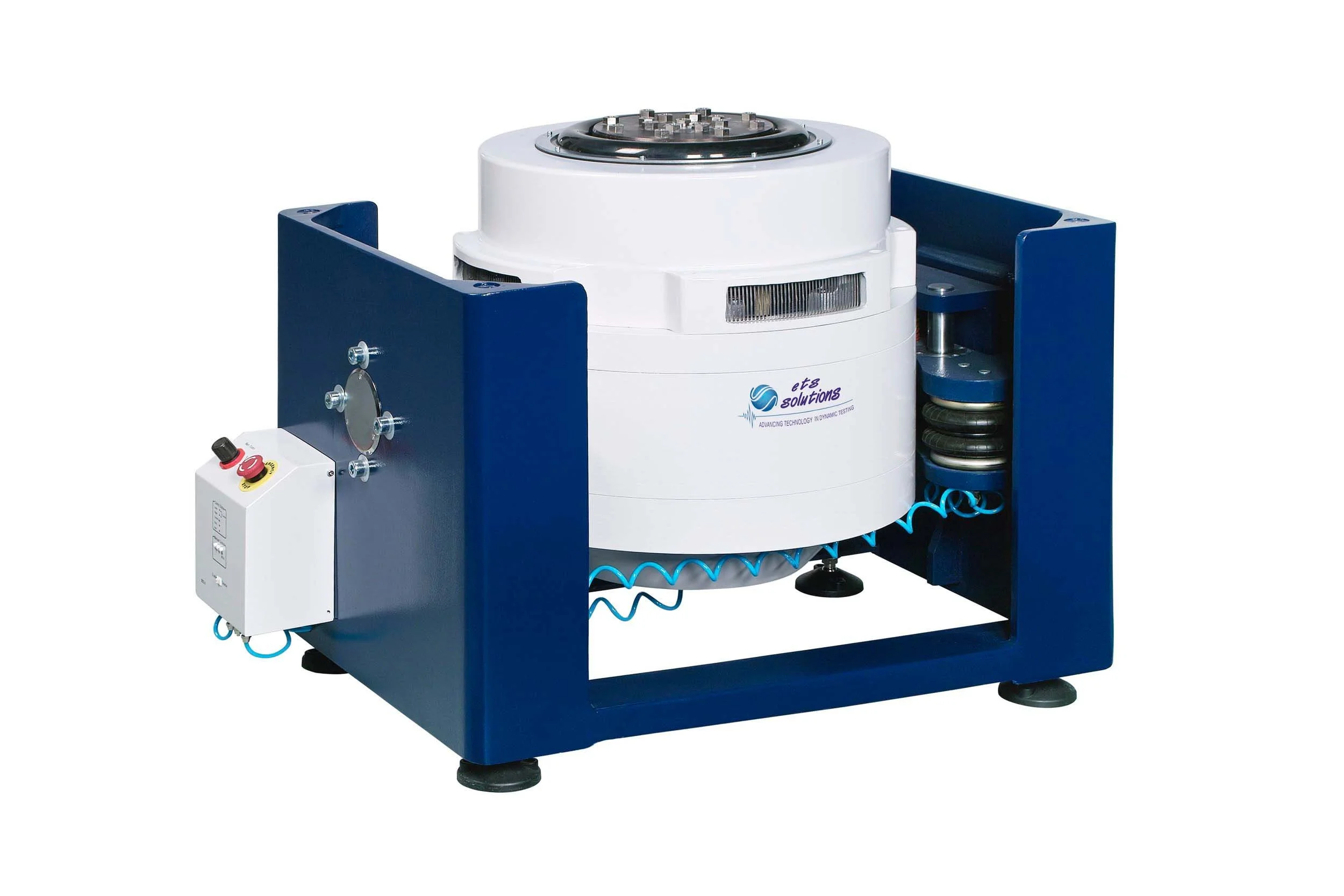

M Series Shaker

M Series Shaker

M Series shakers are designed for vibration testing of medium-sized payloads, including electronic assemblies, home appliances, automotive components, aviation and avionics parts, and other sub-assemblies.

Specifications

    • Specimen payload up to 308 lb (140 kg)

    • Armature diameters: 9.5 in (240mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Available as a Unibase slip table with GT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 4,000Hz

    • Specimen payload up to 660 lb (300 kg)

    • Armature diameter: 12.6 in (320 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Available as a Unibase slip table with a choice of GT or BT bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation and dual support bearing guidance

    • Usable frequency range from DC to 3,000 Hz

    • Specimen payload up to 661 lb (300 kg)

    • Armature diameters: 12.6 in (320mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Available as a Unibase slip table with a choice of GT or BT bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 3,000Hz

    • Specimen payload up to 1,100 lb (500 kg)

    • Armature diameter: 14.6 in (370 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation and dual support bearing guidance

    • Usable frequency range from DC to 2,500 Hz

    • Specimen payload up to 660 lb (300 kg)

    • Armature diameters: 12.6 in (320mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Available as a Unibase slip table with a choice of GT or BT bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 3,000Hz

    • Specimen payload up to 1100 lb (500 kg)

    • Armature diameters: 14.6 in (370mm)

    • Servo controlled operation up to 2 in (51 mm) continuous displacement

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 2,700Hz

    • Specimen payload up to 2200 lb (1000 kg)

    • Armature diameters: 17.5 in (445mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from 5Hz to 2,700Hz

    • Specimen payload up to 2200 lb (1000 kg)

    • Armature diameters: 18.9 in (480mm)

    • Servo controlled operation up to 2 in (51 mm) continuous displacement

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from 5Hz to 2,500Hz

    • Specimen payload up to 1,100 lb (500 kg)

    • Armature diameter: 12.6 in (320 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Rugged trunnion design with air isolation and dual support bearing guidance

    • Usable frequency range from DC to 5,000 Hz

LS Series Shaker

LS Series Shaker

LS Series shakers are designed for long-stroke vibration testing, with continuous displacement up to 90 mm, shock displacement up to 100 mm, and frequencies up to 3,000 Hz.

Specifications

    • Specimen payload up to 660 lb (300 kg)

    • Armature diameters: 12.6 in (320mm)

    • Continuous displacement up to 3.54 in (90 mm), with shock displacement up to 3.94 in (100 mm)

    • Available as a Unibase slip table with a choice of GT or BT bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 3,000Hz

    • Specimen payload up to 1,100 lb (500 kg)

    • Armature diameters: 14.6 in (370mm)

    • Continuous displacement up to 3.54 in (90 mm), with shock displacement up to 3.94 in (100 mm)

    • Available as a Unibase slip table with a choice of GT or BT bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 2,700Hz

    • Specimen payload up to 2200 lb (1000 kg)

    • Armature diameters: 17.5 in (445mm)

    • Continuous displacement up to 3.54 in (90 mm), with shock displacement up to 3.94 in (100 mm)

    • Available as a Unibase slip table with a choice of GT or BT bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 2,500Hz

    • Specimen payload up to 2200 lb (1000 kg)

    • Armature diameters: 18.9 in (480mm)

    • Continuous displacement up to 3.54 in (90 mm), with shock displacement up to 3.94 in (100 mm)

    • Available as a Unibase slip table with a choice of GT or BT bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from DC to 2,500Hz

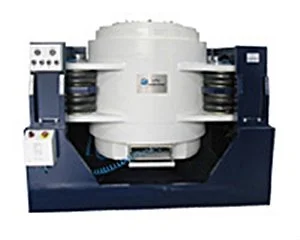

I Series Shaker

I Series Shaker

I Series vibration testing systems are designed for medium to large assemblies requiring high acceleration and frequencies up to 2,700 Hz. They support demanding electronics, automotive, aviation, and avionics testing applications.

Specifications

    • Specimen payload up to 1100 lb (500 kg)

    • Armature diameters: 14.6 in (370mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from 5Hz to 2,700Hz

    • Specimen payload up to 1,320 lb (600 kg)

    • Armature diameter: 17.5 in (445 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement, optionally up to 3.0 in (76 mm)

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from 5Hz to 2,200Hz

    • Specimen payload up to 1,100 lb (500 kg)

    • Armature diameter: 17.5 in (445 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Rugged trunnion design with air isolation and dual support bearing guidance

    • Usable frequency range from 5 Hz to 2,500 Hz

    • Specimen payload up to 1,320 lb (600 kg)

    • Armature diameter: 17.5 in (445 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement, optionally up to 3.0 in (76 mm)

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation and dual support bearing guidance

    • Usable frequency range from 5 Hz to 2,500 Hz

    • Specimen payload up to 2,420 lb (1,100 kg)

    • Armature diameter: 23.6 in (600 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement, optionally up to 3.0 in (76 mm)

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation and dual support bearing guidance

    • Usable frequency range from 5 Hz to 2,200 Hz

    • Specimen payload up to 2,420 lb (1,100 kg)

    • Armature diameter: 23.6 in (600 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Rugged trunnion design with air isolation and dual support bearing guidance

    • Usable frequency range from 5 Hz to 2,000 Hz

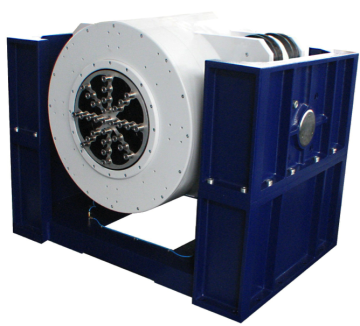

H Series Shaker

H Series Shaker

Water-cooled Series designed to test some of the world’s most complex applications, including satellites, avionics, combined space simulation, military electronics and hazardous materials. Used worldwide in clean room environments and can be certified to federal standard 209 Class 100000.

Specifications

    • Specimen payload up to 1320 lb (600 kg)

    • Armature diameters: 17.5 in (445mm)

    • Servo controlled operation up to 2.5 in (63.5 mm) continuous displacement, optionally up to 3.35 in (85 mm)

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from 5Hz to 2,500Hz

    • Specimen payload up to 2,420 lb (1,100 kg)

    • Armature diameter: 18.9 in (480 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement, optionally up to 2.5 in (63.5 mm)

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from 5Hz to 2,500Hz

    • Specimen payload up to 3520 lb (1,600 kg)

    • Armature diameter: 23.2 in (590 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from 5Hz to 2,000Hz

    • Specimen payload up to 4,400 lb (2,000 kg)

    • Armature diameter: 25.6 in (650 mm)

    • Servo controlled operation up to 2.5 in (63.5 mm) continuous displacement, optionally up to 3.0 in (76 mm)

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from 5Hz to 2,000Hz

    • Specimen payload up to 11,000 lb (5,000 kg)

    • Armature diameter: 31.5 in (800 mm)

    • Servo controlled operation up to 2.0 in (51 mm) continuous displacement, optionally up to 3.0 in (76 mm)

    • Available as a Unibase slip table with GT and BT type bearings. See Slip Table page for full details

    • Rugged trunnion design with air isolation with dual support bearing guidance

    • Usable frequency range from 5Hz to 1,700Hz

SHAKER OPTIONS & ACCESSORIES

We understand that test requirements constantly change and equipment must be versatile in its application. That is why the engineers at ETS Solutions offer such a wide choice of options and accessories. We are here to help and respond to a customers needs

    • Load attachment inserts with Metric and American threads

    • PCD insert patterns to match existing jigs and fixtures

    • Armature frames in Magnesium or Aluminium

    • Motorized Shaker Body Rotation System

    • Enclosed Air Inlet and Outlet Ducts

    • Air Isolation Mounts

    • Air Glide Casters

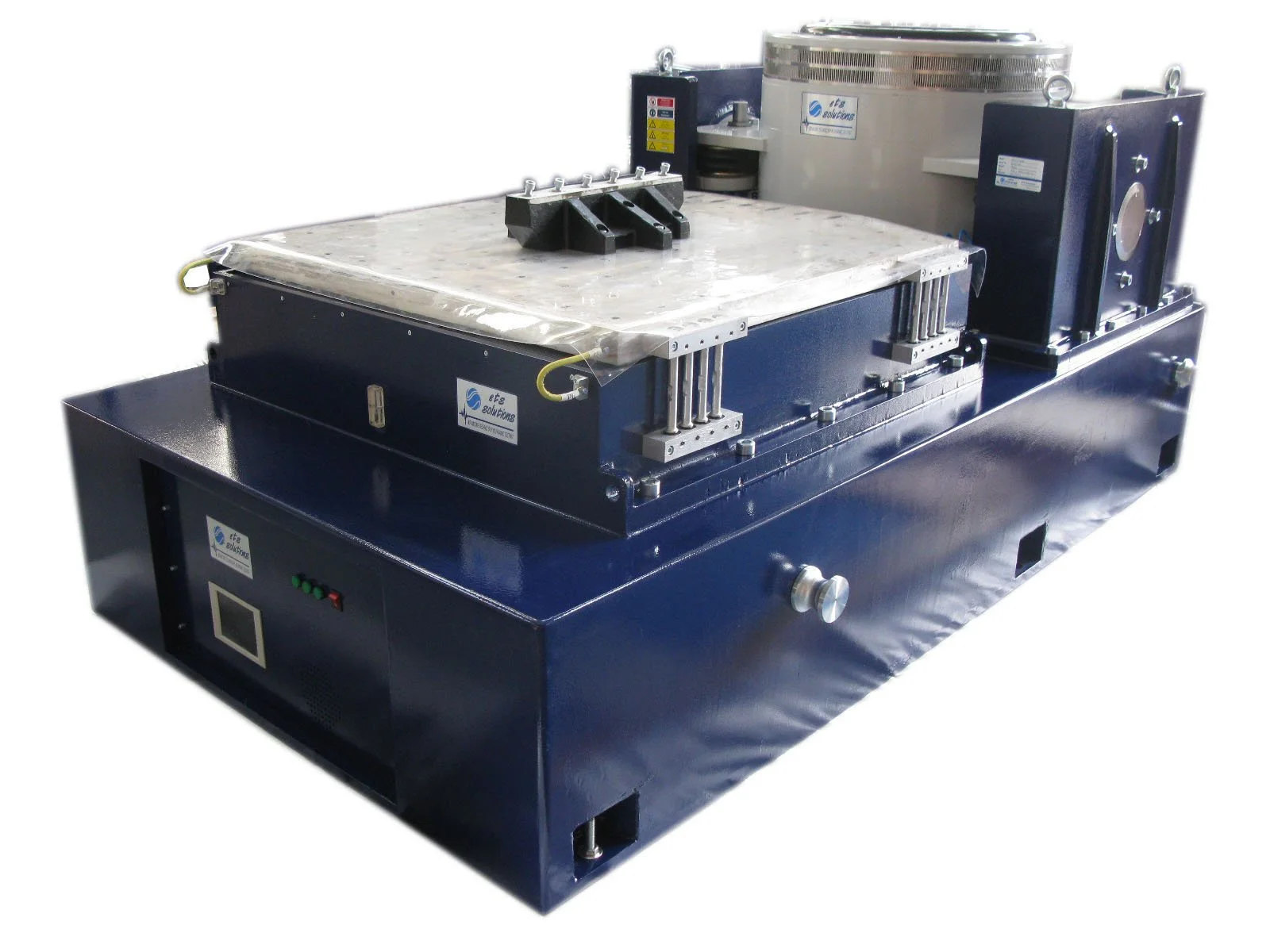

    • Unibase Slip Tables

    • Standalone Slip Tables

    • Slip Tables to any Size and Shape

    • Additional BT Series journal bearings

    • Thermal Barriers for use with Climatic Chambers

    • Slip Plates in Magnesium or Aluminium

    • Gun Drilled Slip Plates for low temperature applications

    • Head Expanders and Vertical Support Platforms

    • Customized Fixtures -Cube, L type and T type

    • Auxiliary Interlock Unit for additional safety Interlock

    • Remote Control Panel via RS485 data communication
