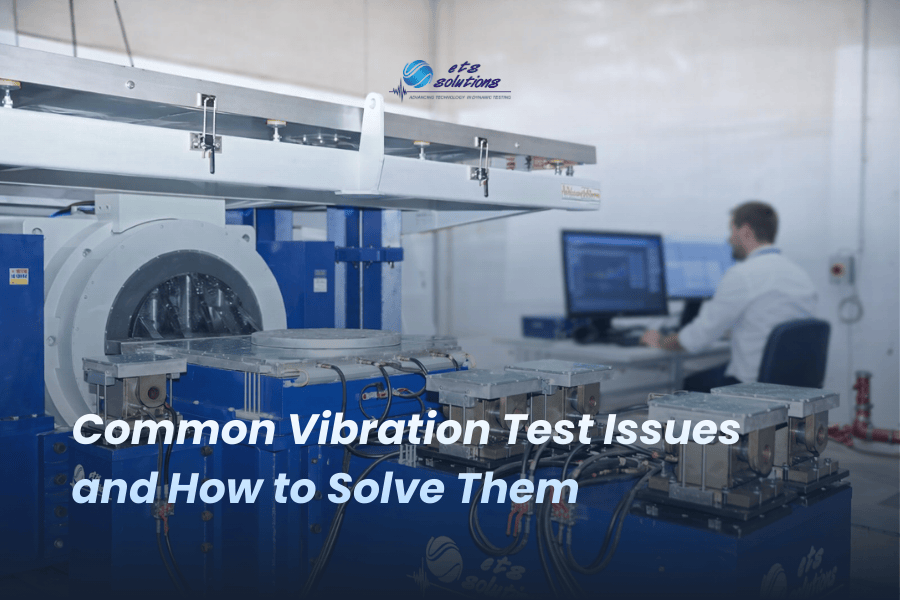

Common Vibration Test Issues and How to Solve Them
Fixture resonances. Noise floor. Cable movement. Data that “looks wrong.” This guide walks through the problems test engineers run into most—and practical fixes that actually work.
Vibration testing is supposed to make failures visible. But sometimes the test setup becomes the failure.
If you’ve ever seen a PSD that won’t settle, a sine sweep that “blows up” at one frequency, or random vibration that looks like noise even at low level—you’re not alone. Many vibration test issues come from a small number of root causes: fixture dynamics, instrumentation, cabling, and control loop quality.
This article is a troubleshooting guide: symptom → likely cause → what to do next.
Start here: the 60-second triage
Before you change test parameters, do these quick checks:
Confirm total payload (DUT + fixture + head expander + adapters + cables). Overloads and underestimates cause control problems and can limit performance.
Run a low-level sine sweep (or low-level random pre-test) to reveal fixture resonances and control instability early.
Check accelerometer orientation and mounting. Bad mounting = bad data.
Secure cables close to sensors and along the fixture. Cable whip can inject noise-like signal into your measurements (triboelectric effects).
If those are wrong, everything downstream gets messy.
1) Fixture resonances
What you see:
A big spike during sine sweep at a frequency you didn’t expect
Random vibration “over-test” in a narrow band
The controller struggles to hold tolerance
Different mounting locations on the DUT show very different levels
Why it happens:
Fixtures can resonate inside your test band, amplifying motion at specific frequencies. That can cause over-test at the DUT or unstable control. A fixture should transmit energy cleanly without adding its own “signature.”
What to do (practical fixes):
Stiffen the fixture: add ribs/gussets, shorten spans, reduce tall standoffs, increase section thickness.
Reduce mass where you can: heavy fixtures eat force and change dynamics.
Move the resonance out of the test band: change geometry so the first mode lands above your highest test frequency (or below your lowest).
Validate with a low-level survey (sine sweep or FRF) before running full-level random.
For horizontal tests: make sure the slip table, guidance, and coupling are appropriate for the load and frequency band. Poor alignment and side-loading can look like “fixture problems.”
See also:
“Finding the Right Shaker for Your Test Application” (helps you size correctly so fixtures and payload don’t push the system into limits).
Slip table overview (horizontal testing platform and alignment concepts).
Head expanders & fixtures (design intent and real heavy-load examples).
2) High noise floor and “dirty” data
What you see:
Random PSD looks noisy even at low level
Control signal jumps around
Unexpected peaks at unrelated frequencies
You can’t hit low-level profiles reliably
Data changes when you reroute cables or move equipment
Why it happens:
Noise can come from the measurement chain (sensor + cable + conditioning), EMI pickup, grounding issues, or the test structure acting like an antenna. Sentek notes that payloads/slip tables can pick up ambient signals, and that cabling/shielding choices can reduce noise.
What to do (practical fixes):
Measure your noise floor intentionally before the real test (low-level random check/pre-test).
Use shielded, low-noise cables and keep them away from power leads and noisy devices.
Avoid ground loops; isolate where needed (common best-practice in vibration measurement guidance).
Keep your control system and monitor devices away from strong stray fields (a known siting concern in vibration labs).
Where ETS fits in:
Stable measurement depends on the whole chain: shaker + amplifier + control + instrumentation. ETS power amplifier families are designed specifically for shaker systems and vibration use.
3) Cable movement (cable whip) and triboelectric noise
What you see:
Broadband “noise-like” signal that comes and goes
Spikes that don’t match the vibration profile
Data changes when you touch or move cables
The accelerometer looks “wrong” at low levels
Why it happens:
Cable motion can generate unwanted electrical output—often described as triboelectric noise—especially if cables are free to whip near the sensor or rub against surfaces.
What to do (practical fixes):
Tie down the cable close to the accelerometer first, then route it along the fixture in small, supported runs.
Avoid long unsupported cable loops near moving structures.
Use appropriate low-noise cable types when required and reduce motion points.
This is one of the highest ROI fixes in a lab. It’s also one of the most common issues called out in practical vibration troubleshooting.
4) Accelerometer problems: wrong sensor, wrong mount, saturation
What you see:
Flat-topped signals (clipping)
Values that don’t make sense (wrong axis)
Different readings after re-mounting
High-Q resonance blows the channel out
Why it happens:
Common issues include selecting a sensitivity that saturates your input range, poor mounting method, or mounting in the wrong direction.
What to do:
Confirm input range vs expected G-levels (especially near resonances).
Use the best mounting method possible (stud mount when feasible; adhesives can work but must be done correctly).
Double-check axis orientation—especially on slip table (horizontal) setups.
5) Control issues: can’t hold tolerance, unstable loop, “hunting”
What you see:
Controller overshoots and corrects repeatedly
Abort conditions triggered for not meeting tolerance
Notching becomes excessive
Test “works” only when you reduce level dramatically
Why it happens:
A stable test depends on closed-loop control and a good estimate of how the system responds (FRF). Noise and resonant structures can corrupt the FRF and make control unstable.
What to do:
Run a pre-test / low-level random to establish stable control and a clean FRF.
Fix the fixture resonance first (don’t tune around a bad fixture forever).
Reduce noise sources before attempting tight tolerances.
6) Chamber + shaker integration issues: condensation, thermal stress
What you see:
Corrosion risk, intermittent faults, shorts
Mechanical binding or friction changes
Odd behavior during temperature transitions
Why it happens:
When running vibration with thermal chambers, you can get condensation if the armature/chamber interface drops below dew point. Thermal expansion can also introduce stress—especially in multi-bearing slip table setups.
What to do:
Use thermal barriers or heaters at the interface when needed.
Plan for thermal expansion in fixturing and interfaces.
For combined testing programs, work with an integrated system approach (shaker + slip table + chamber + fixtures). ETS highlights this integrated approach in its customization work.
FAQ: the questions people actually ask
How do I know if my fixture is resonating?
Run a low-level sine sweep. If you see a sharp amplification at a frequency (and it repeats), suspect fixture modes.
My random test looks like noise. What’s the first thing to check?
Cables and grounding. Cable whip and triboelectric noise are common, and proper tie-down is a fast fix.
Why can’t I hit low-level random profiles?
Your system noise floor may be too high (EMI pickup, cabling, sensor/cable type). Check noise floor with a low-level random verification and improve shielding/cabling.
Do I always need a slip table for horizontal vibration?
If you need controlled horizontal motion, a proper slip table platform and alignment matter. Mismatches can show up as “control problems” and side-loading issues.
